While in Africa late 2011, I gave away all of the instruments
I brought over, including my original Harp-Kora (which is now
owned by Brother Boris, head Kora-Maker at Keur Moussa Monastery
west of Dakar, Senegal).

Missing my original invention, I set out 2/15/2012 to build
another one and just completed it in three days of occasional
tinkering – thus this article.

The Harp-Kora described here is quite similar to the original
except that it utilizes inexpensive guitar-type machine gear
tuners instead of “Zither-Pins” & therefore is much easier to tune.

My original Harp-Kora construction article (with a few modifications)
is still on my webpage here. I have no plans to remove it.

Zither Pins only adequately work (hold without slipping) if
mounted in VERY hard wood such as Rock (aka Sugar) Maple, but
in this 2nd generation instrument where geared tuners are used
instead of Zither Pins, a hardwood frame is not at all necessary.
The frame described here is cut from a single piece of three foot
long regular soft Pine construction wood – a “2 by 10”.
The relative light weight of Pine somewhat offsets the added
weight of the geared tuners. The triangular shape is cut first,
then the innards of the triangle are cut free. If a bandsaw is
used, the “entrance cut” is then repaired by gluing in a sliver
of any type of wood and clamping.

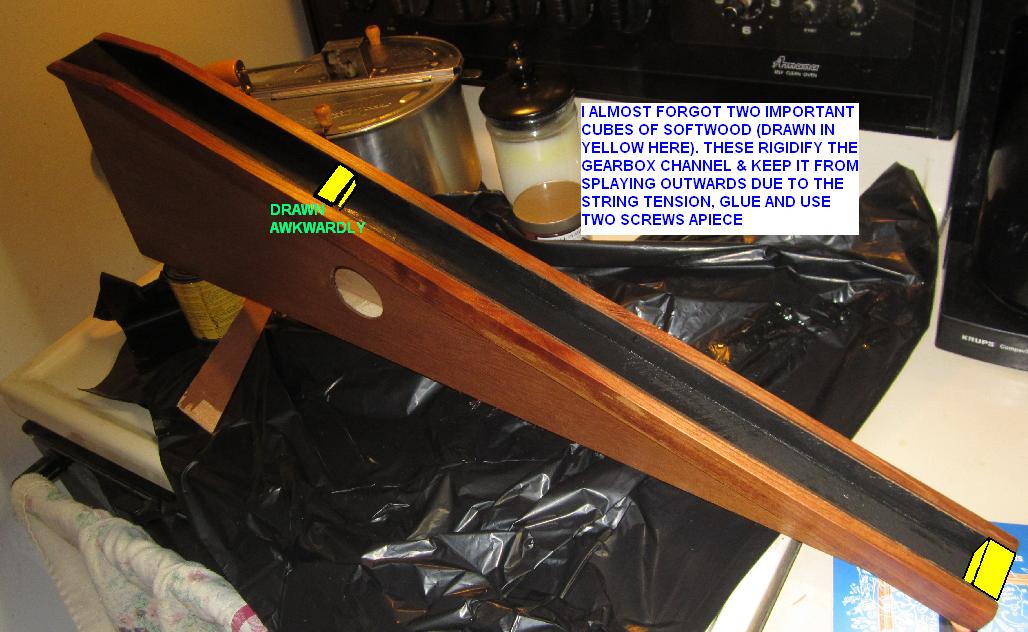

One might object that this frame might be too flimsy to support
all the string tension – but because there are strings on both
the right and the left side of the instrument – any one-sided
tension is easily balances out by the set of strings on the
opposite side.

The soundboard for each of the two sides is made from salvaged
1/8 inch thick plywood obtained from a Habitat for Humanity thrift
store door (a great and inexpensive source of musical instrument
tinkering plywood).

Although it looks nothing whatsoever like a west African Kora,
this Harp-Kora plays JUST like one – same string intervals, same
scale, same string spacing etc. The tone is different, but by no
means objectionable. Being that this thing can be built essentially
for the low cost of purchasing 21 guitar-type tuners (less than two
dollars apiece), a few yards of musical wire strings (most can be
salvaged from nylon-covered steel core clothesline), an old door
(they go for $5 locally) and some scraps of wood, this is a very
easy and inexpensive way to break into the most fascinating world
of playing the Kora.

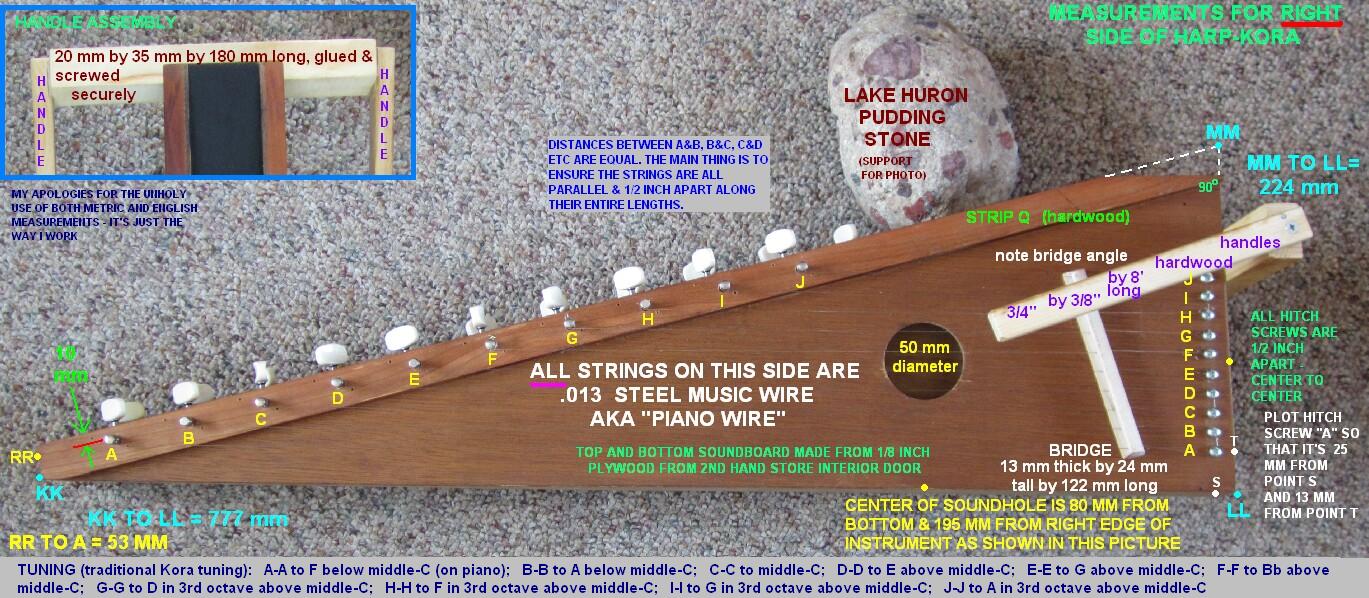

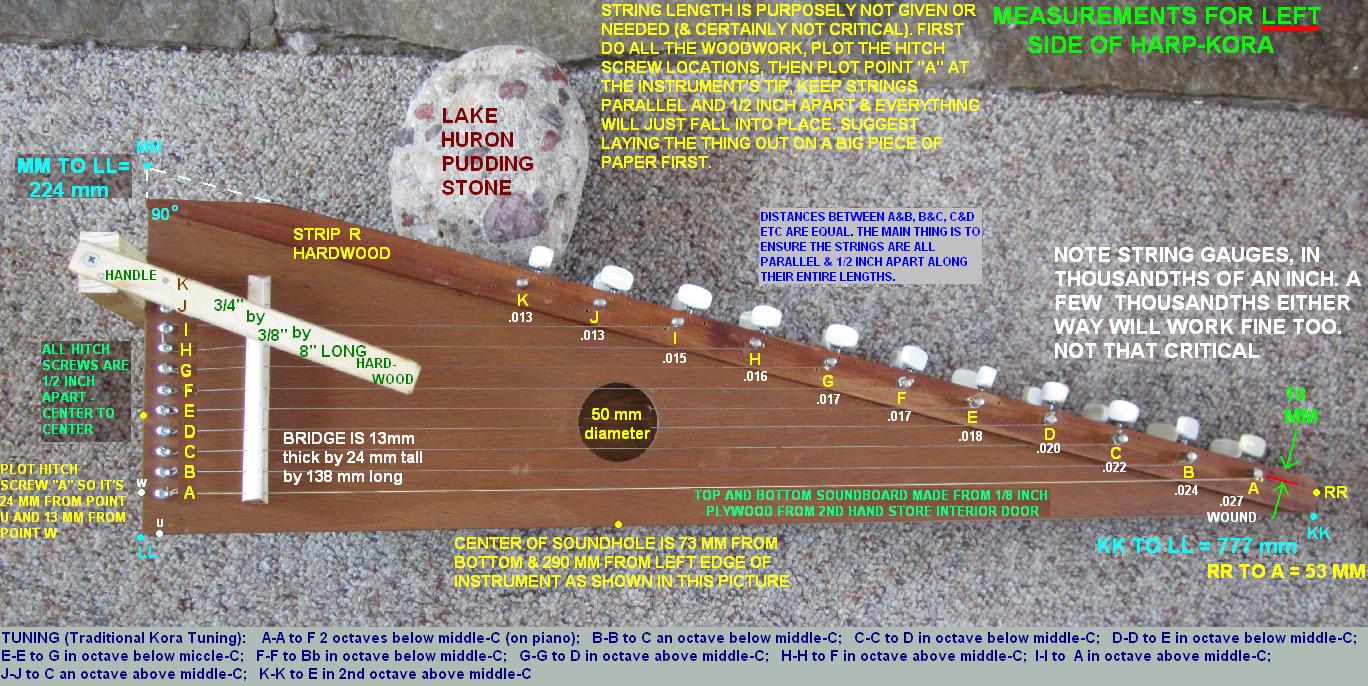

On this Harp-Kora I experimented with different gauges of steel
strings and have tuned the pitch up to the (debatably) “standard”
Kora pitch of “F”. The balance “feel” while playing this instrument
is different than my original one due to the weight of the geared
tuners, It nonetheless feels quite comfortable perched upon a knee
or lap and can be held while standing comfortably too. The soundholes
are larger than in the original and that, along with the higher pitch,
makes for a noticeably louder overall sound – I'd judge the overall
volume to be similar to that of an acoustic guitar.

Shortly I plan to upload a youtube video of this instrument being played.

This article has been “rushed to press” - check back here in a while
for the finished article.

LET ME KNOW IF YOU BUILD ONE!

Dennis Havlena
