This thing was born of frustration at being infatuated
with the hang-Drum, but not being able to do anything
about it, their being unavailable, short of travelling
to Switzerland.

So -- what to do ?  --- Invent something that has the
same playing layout as a hang drum & plays with a
similar slappytapping hand action. Thus this PVC "beauty"
(yeah, they're golf-balls!)
CLICK HERE for a short YouTube video showing this instrument being played


I've worked all the bugs out of this thing and it sounds
good - just not much like a metal hang. Using stock bronze-
wound guitar strings, as you might expect, it sounds somewhat
like a guitar, but, I think, pleasingly different. In any
event, it's a real instrument and a whole lot of fun to play.

Having strings and adjustable tuning gears, you can put this
instrument in any hang scale you wish very easily. I have been
fascinated with D minor pentatonic, where mine remains most of
the time. It sounds in the same octave as a metal hang-Drum.

Most of the parts are readily available at any lumber/hardware store.
A few of the items can be bought at Wal-Mart. I got the guitar tuning
gears from elderly.com for about $11. Strings came from Wal-Mart
(their "First Act" brand which was on sale for a buck a set (two sets
are needed to get enough of the proper gauge strings for this instrument).
The tube was made from a single piece of 1/4" Luan mahogany handi-panel
that cost $4 at Home Depot. Total cost for this stringed "hang-Drum" was
on the order of $20 (June, 2007 prices).
 .
Like a lot of things on my webpage, not much is critical or fussy --
not the tube diameter, heigth, length of striker mechanisms, etc.

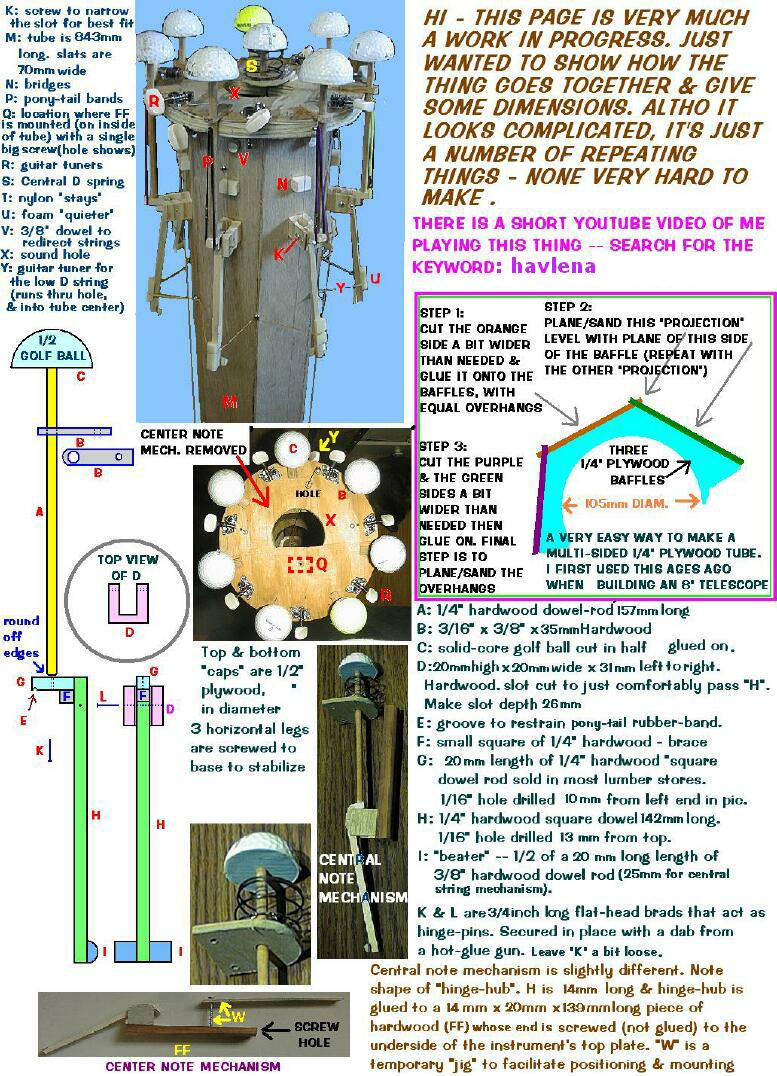

A few things might better be made closely though:
- Make the slot in D just fit H -- not too loose or tight.
- Location of the brad-hole in G
- The whapper-head ("I") is made wide so it won't ever miss the string.
  Make sure it's "aimed" properly.
- Ensure that the loose joint where A meets G IS loose (but not too loose).
That's about all the somewhat fussy stuff.

The Low D ("ding") string & mechanism, being mostly mounted inside the tube,
is not the easiest to install -- I made a temporary "jig" ("W") that greatly
eased this installation.

By experimenting with where the hole in "G" was drilled, I got the "action"
down to a very easy 3/8" (ie: golf-ball half moves 3/8" when tapped).
In this light, make sure the pony-tail rubber-bands are light-weight and
long enough so "pushing-pressure" at the golf-ball is just enough to
reset the mechanism. A heavier band makes it hard to push.

This choice of guitar strings maintains the same string-tension as on a guitar:
- For the Low "D" (the central "ding")--- use a guitar Low E string & make
  string-length _(tba)_mm long
- For the Low A --- use a guitar A string, make string-length _(tba)_mm long
- For the Low C --- use a guitar D string & make string-length _(tba)_mm  long
- For the D --- use a guitar D string, make string-length _(tba)_mm  long
- For the F --- use a guitar G string & make string-length _(tba)_mm long
- For the G --- use a guitar G string, make string-length _(tba)_mm long
- For the High A--- use a guitar B string & make string-length _(tba)_mm long
- For the High C --- use a guitar B string & make string-length _(tba)_mm long

Dennis Havlena - W8MI
Mackinac Straits, northern Michigan
6/24/07
